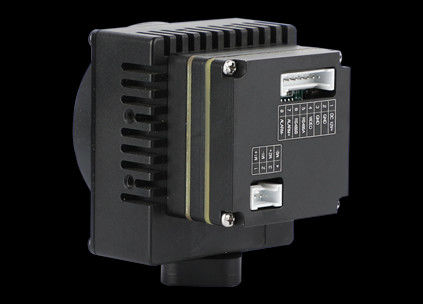

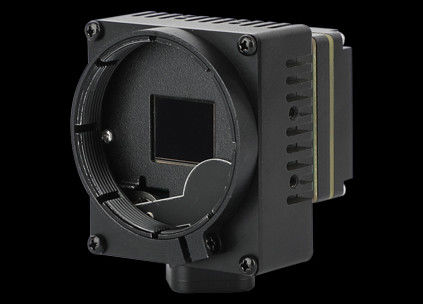

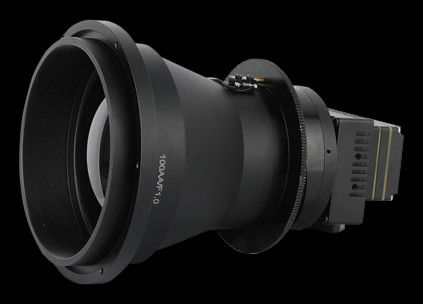

冷却されたLynredの探知器の赤外線画像のカメラ システム
主要 な 特質
ブランド名:
thundsea
原産地:
中国
認定:
CCS
最低注文数量:
1セット
供給能力:
1ヶ月あたりの30セット
納期:
15日
支払い条件:
L/C、T/T
標準梱包:
カートン箱
製品概要
640*512中波はLynredの探知器との熱中心を冷却した 640熱中心を冷却した
製品カスタム属性
ハイライト
640*512赤外線画像の監視カメラ
,冷却された携帯用赤外線画像のカメラ
,Lynredの探知器の熱カメラの監視
探知器:
MCT640×512
スペクトル領域:
3.7~4.8μm
ピクセル ピッチ:
15μm
冷却方法:
スターリング冷却装置
NETD:
≤の25mk@25の℃
放射能冷却期間:
正常な温度≤8分
デジタル ビデオ:
LVDS
フレームの頻度:
25Hz
製品説明
640*512中波はLynredの探知器との熱中心を冷却した
640熱中心を冷却した
